Network Isolator emosafe EN-100T
75,00 € (excl. VAT)

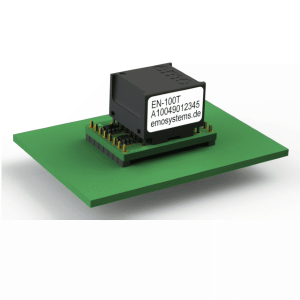

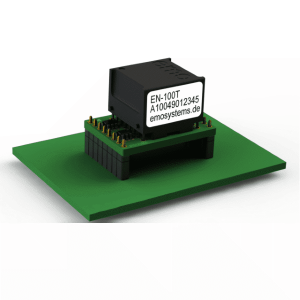

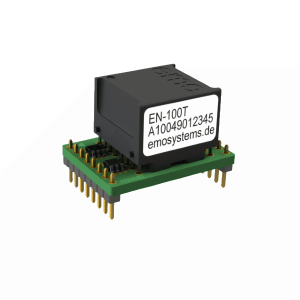

Network Isolator for PCB assembly, 10/100/1000 Mbit/s, Class D Performance, downwards-facing header pins
Network Isolator for PCB assembly, supports 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s data transfer rates, Class D Performance, downwards-facing header pins for socket insertion or soldering
- Type
- PCB Assembly

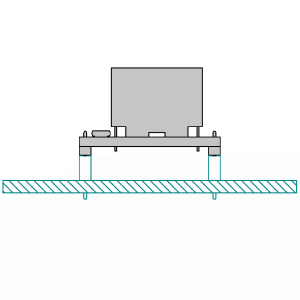

- Mounting Arrangement
- Header pins, for sockets or soldering
- Supplementary ESD Protection
- yes (TVS)
- Front Connection
- Downwards-facing header pins
- Rear Connection
- Downwards-facing header pins
- Supported Ethernet Transfer Rates
- 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s
- AC Dielectric Strength @ 50Hz (60s)
- 4600 V
- DC Dielectric Strength (60s)
- 8500 V
- ISO 11801 Performance Category
- Class D
- Insertion Loss (typical)
- 0.8 dB @ 100MHz
- Return Loss (typical)
- UL File No.
- E362969
- Maximum Working Voltage Environment
- 400 V AC
- EN 60529 Protection Rating
- -
- IEC60601-1 Isolation Type
- Reinforced Isolation
- Weight
- 6 g
- Operational Temperature Range

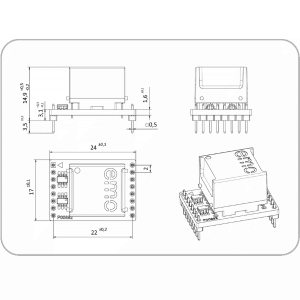

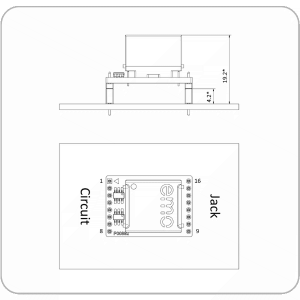

Data sheet: EN-100T
(PDF 10.8 MB)
3D Model (Step): EN-100T
(ZIP 132kB)
Find more downloads on our downloads page.
